Creality Ender 3 V2 (4.2.7) Mainboard Wiring

Created by DREMC STORE, Modified on Sun, 14 Dec at 8:31 AM by DREMC STORE

For Ender 3 V2 (4.2.7)

TABLE OF CONTENTS

Basic Pinout/Wiring
Bl Touch Wiring (Z Endstop) 3+2 Pinout:
- Klipper Configuration:
Additional Information - Board Schematics:

Basic Pinout/Wiring

Source: Teachingtech Video

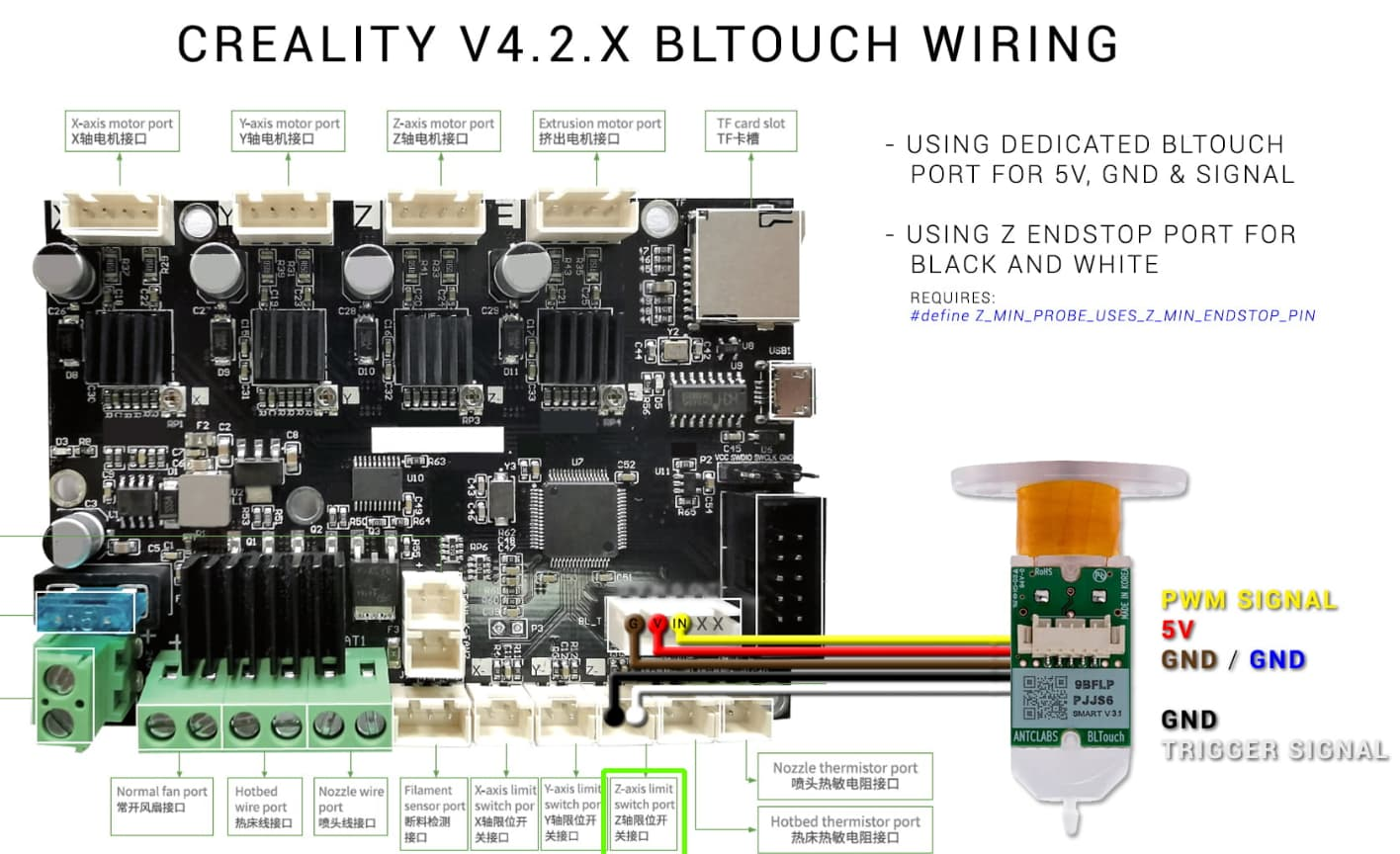

Bl Touch Wiring (Z Endstop) 3+2 Pinout:

Klipper Configuration:

[bltouch]
sensor_pin: ^PA7
z_offset: 0
control_pin: PB0
probe_with_touch_mode: True
x_offset: -48
y_offset: 10
#pin_move_time: 0.0

Additional Information - Board Schematics:

https://klipper.discourse.group/uploads/short-url/3uL2dJ54wULdfFvdLsui9LPZKpA.pdf
