How to replace Anycubic Kobra Toolhead PCB

Modified on Fri, 18 Apr at 10:58 PM

Spare Part: https://store.dremc.com.au › products › anycubic-kobra-3-print-toolhead-pcb


Mirror: https://wiki.anycubic.com/en/fdm-3d-printer/kobra-3-combo/extruder-replacement



Note: Before replacement, the Teflon tube on the 4-in-1 hub needs to be removed







 1. Required tools



●S1.5 Allen key



●S2.0 Allen key



●S2.5 Allen key







 2. Disassembly steps:



 Step 1: Turn off the printer



Before replacing the Y-axis belt, make sure to turn off the printer and disconnect the power supply to ensure safe operation.







 Step 2: Disassemble the print head module

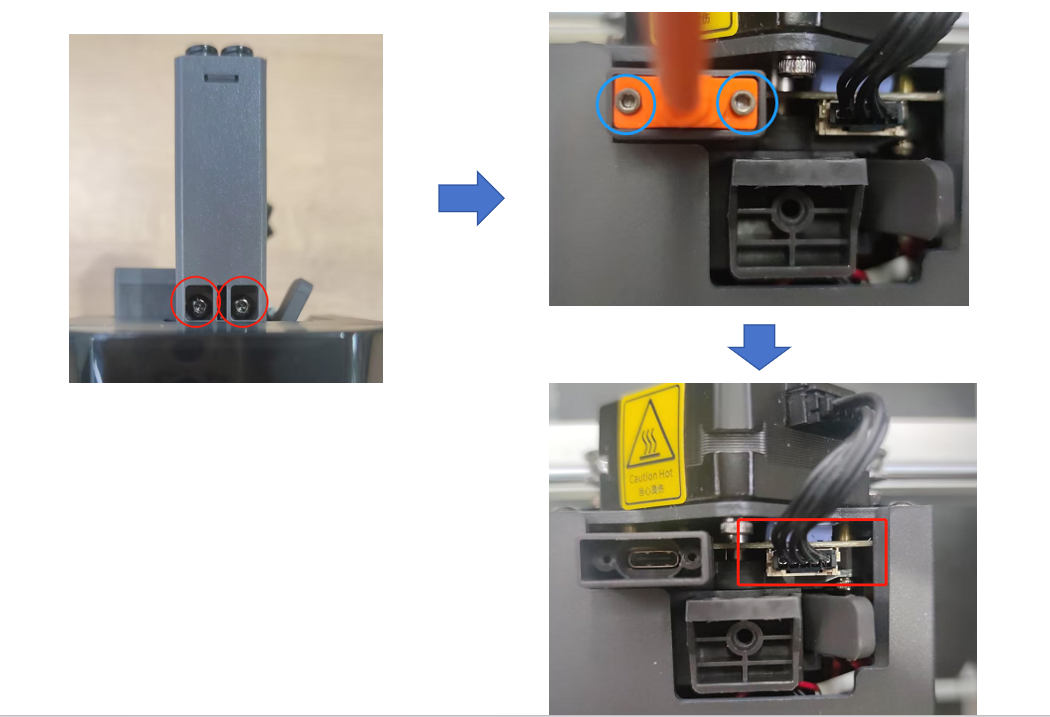

① Remove the print head module from the back of the printer and use the S2.5 Allen key to unscrew the screws that fix the print head module.









② Use the S2.0 Allen key to unscrew the screws that fix the hub 4-in-1.



③ Use the S1.5 Allen key to unscrew the fixing screws that fix the print head cable.



④ Unplug the wiring plug connected to the extruder motor.









 Step 3: Disassemble the printer housing



① Remove the front housing of the print head module and unplug the wiring plugs of the cooling fan and the print head light.









②Use S2.0 or S2.5 Allen key to unscrew the screws of the fixed module housing.









 Step 4: Disassemble the extruder assembly



①Use S2.5 Allen key to unscrew the screws that fix the extruder assembly and remove the wiring plug connected to the adapter board.









②Remove the extruder assembly and use S2.0 Allen key to unscrew the screws that fix the print head adapter board(Toolhead PCB).





②Install new/replacement PCB print head adapter board(Toolhead PCB).


3. Installation steps



 Step 1: Install the extruder assembly



①Use S2.0 Allen key to install the fixed print head adapter board.









②Connect the wiring plug back to the print head adapter board and use S2.5 Allen key to install the fixed extruder.









 Step 2: Install the module housing



①Use S2.0 or S2.5 Allen key to install the fixed module housing.









②Install the module front cover and connect the cooling fan and print head light wiring back to the adapter board.









 Step 3: Install the print head module



①Connect the extruder wiring plug back.









② Reconnect the print head cable and use an S1.5 Allen  key to install and fix it.









③ Use an S2.0 Allen  key to install and fix the four-in-one hub.









④ Use an S2.5  Allen  key to install and fix the print head module.
